KP Water Rural Filtration System plus UV Steriliser

KPRTS103CVRUV

Regular price$2,295.00
/
Tax included. Shipping calculated at checkout.



Rural Water Filtration System with UV – Multi-Stage Whole House Water Filter

UV Water Filter System – Designed for Rural New Zealand Homes

The KP Water Rural Filtration System with UV is built for New Zealand rural water supplies. Whether your water comes from a rainwater tank, bore or spring, this system delivers clean, safe, great-tasting water to every tap in your home.

✅ How It Works

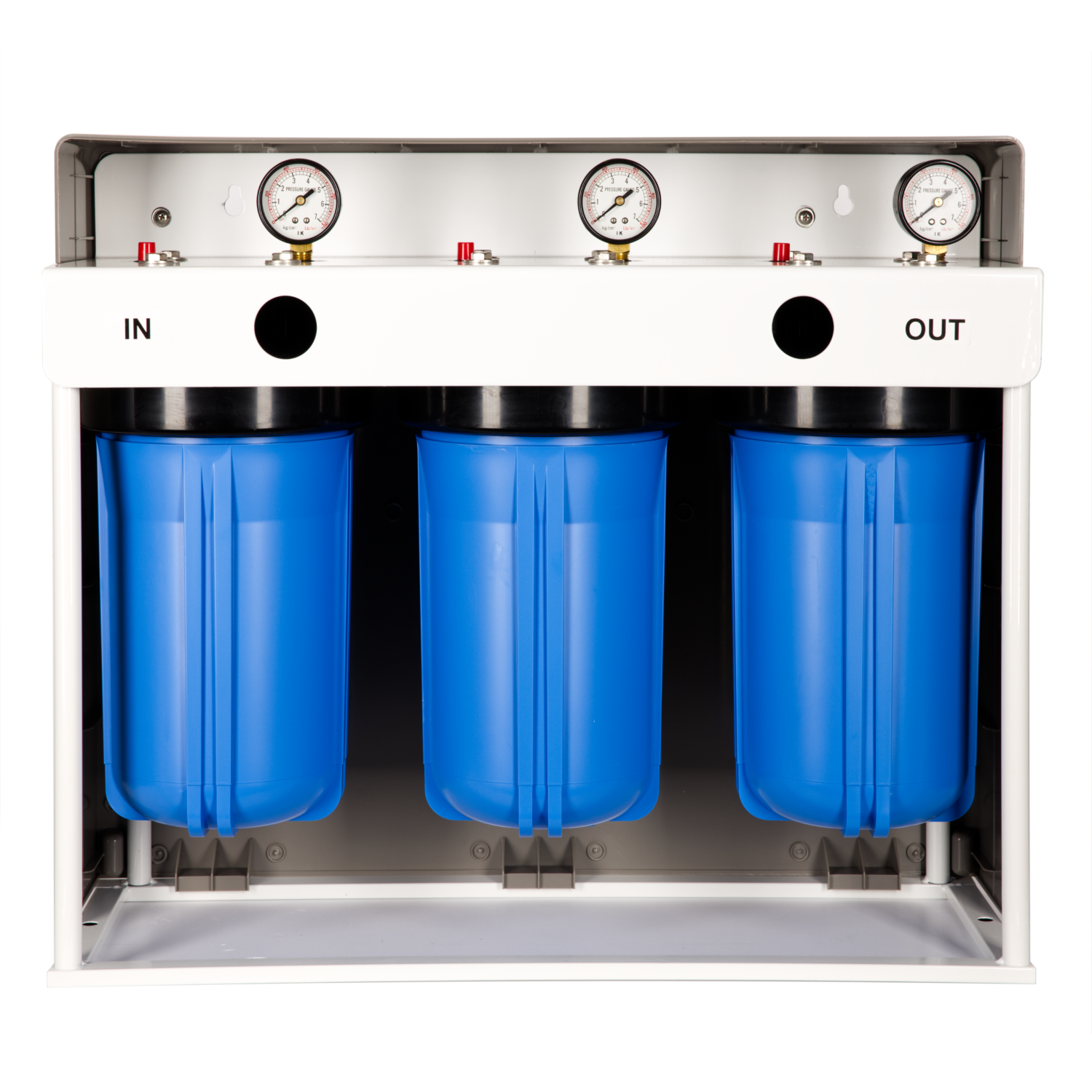

Three 10" filter housings, followed by a UV steriliser:

  • Sediment filter (20 to 1 micron): removes silt, rust and debris, and protects the UV lamp
  • Custom stage: configured to your water test. For example, a pH neutraliser for acidic rainwater, tannin-reduction media, or a second, finer sediment stage. This is most often the second housing, but we set up each system case by case.
  • Carbon/KDF55 filter: reduces bad tastes and odours, chlorine, and soluble heavy metals such as lead, copper and mercury

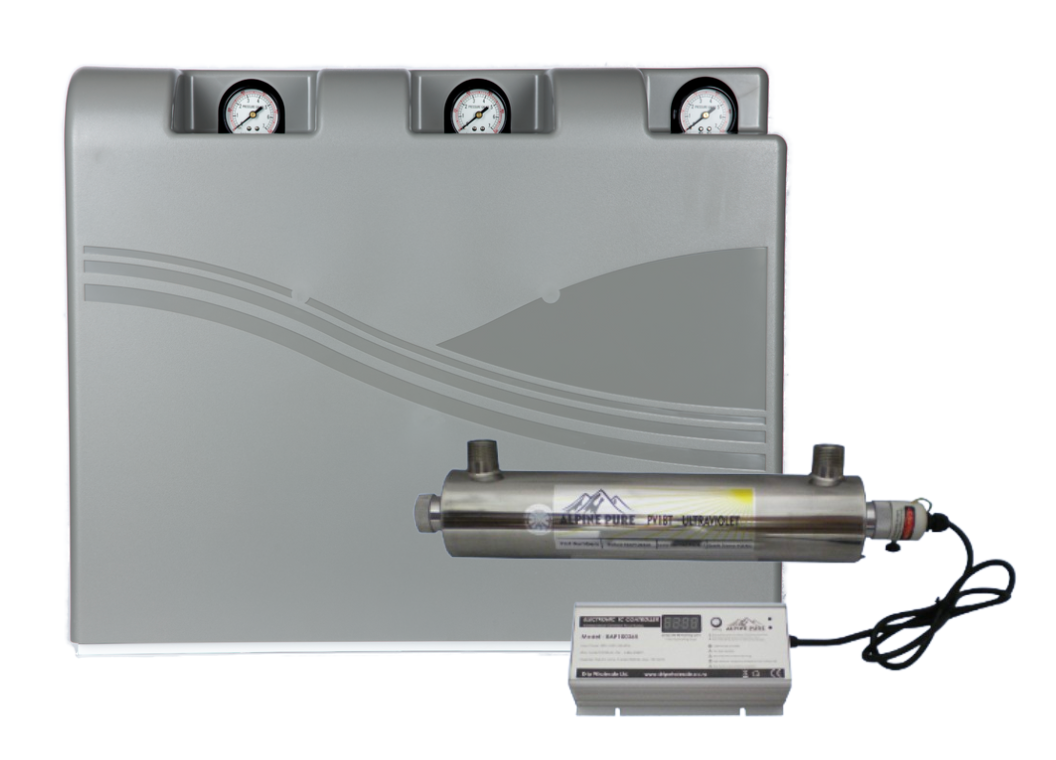

  • Alpine Pure AP PV 18S UV Steriliser: kills bacteria (including coliforms and E. coli), viruses, Cryptosporidium and Giardia. 40 W high-output lamp, 304 stainless steel chamber, and an electronic controller with a power-on light, audible lamp-failure alarm and lamp-replacement reminder.

The UV steriliser is always the final stage, so the water is disinfected after it's been filtered.

💧 Water Testing

The right filter combination depends on your water. We strongly recommend a water test before we finalise your setup. See our Ultimate Water Testing Kit, or send us your existing labratory results and we'll check them for you.

💧 Water Quality Requirements

After filtering, the water reaching the UV must meet these limits:

  • Turbidity under 1 NTU
  • Iron under 0.3 mg/L
  • Manganese under 0.05 mg/L
  • Hardness under 120 mg/L
  • Tannins under 0.3 mg/L
  • UV transmittance over 75%

🛠️ System Specs

  • UV flow rate: up to 51 LPM at a UV dose of 40 mJ/cm², the benchmark for household drinking water. That suits most 1–3 bathroom homes. A flow restrictor is recommended if your pump delivers more than 51 LPM.

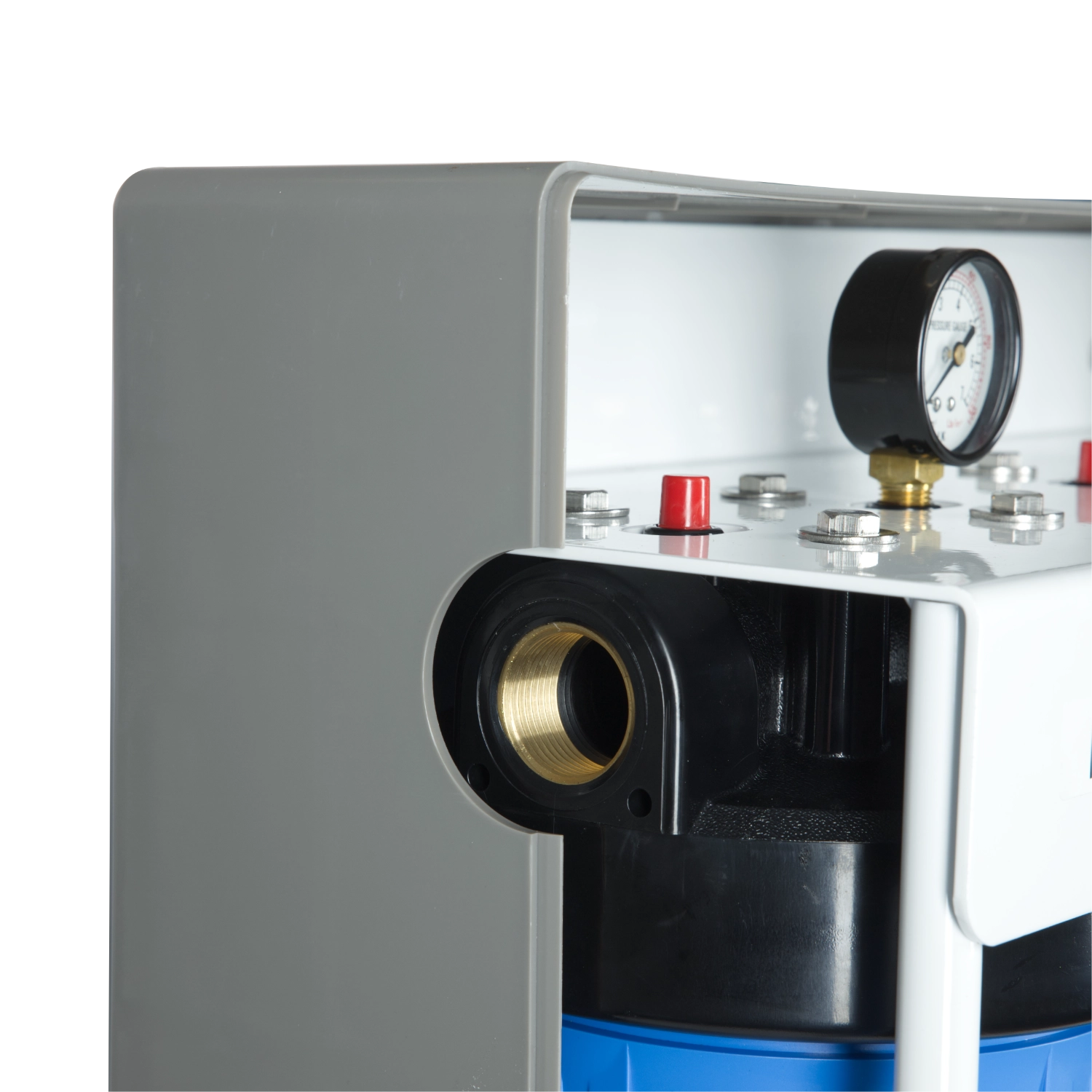

  • 1" connections
  • Includes pressure gauges and cover
  • Dimensions: H 500 mm × W 610 mm × D 235 mm
  • UV unit is WaterMark certified (AS 3497:2021) and UL listed

🔧 Installation

  • Must be installed by a registered plumber. Full instructions are supplied.
  • Install under cover (inside, or in a shed or garage), protected from frost and kept between 4 and 39°C.
  • A backflow prevention valve is required on the UV outlet (AS/NZS 3500.1).
  • The UV needs its own power supply. Don't put it on the same switch as the pump or a light.
  • At start-up, the house plumbing should be disinfected with chlorine. Instructions are included.
  • Outdoor taps and irrigation are best teed off before the system.

🔄 Maintenance

  • UV lamp (AP LP 422): replace every 12 months (9,000 hours), even if it still lights up. UV output fades before the lamp visibly dims.
  • O-ring seal: replace every 12 months
  • Quartz sleeve: clean at every lamp change, and replace it if it's scratched or stained
  • Filter cartridges: replace every 6–12 months, depending on your water quality and use

🛡️ Warranty

  • UV unit: 1 year on electrical components, 9,000 hours on the lamp, 3 years on the stainless steel chamber
  • Filter housings: 5 years
  • Conditions apply, including the water quality limits above

📞 Need Help Choosing?

Contact KP Water for advice on the best system for your property. Heavy-duty 20" versions are also available for larger homes or more challenging water.
